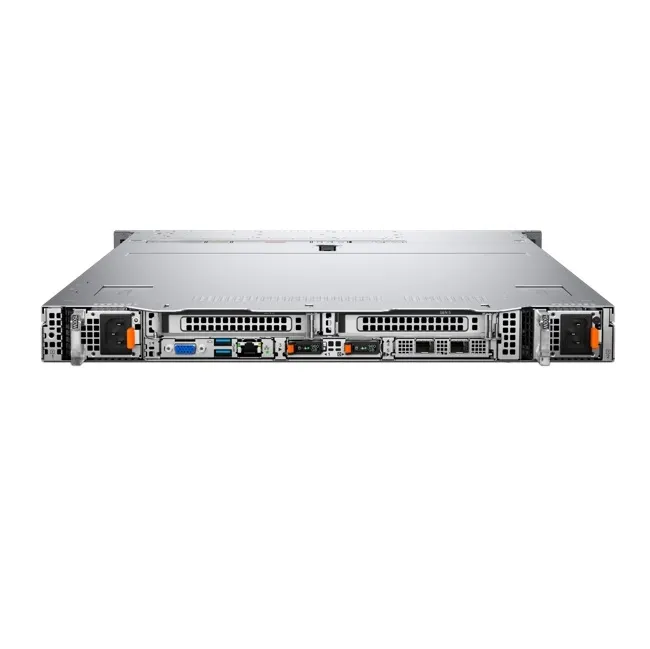

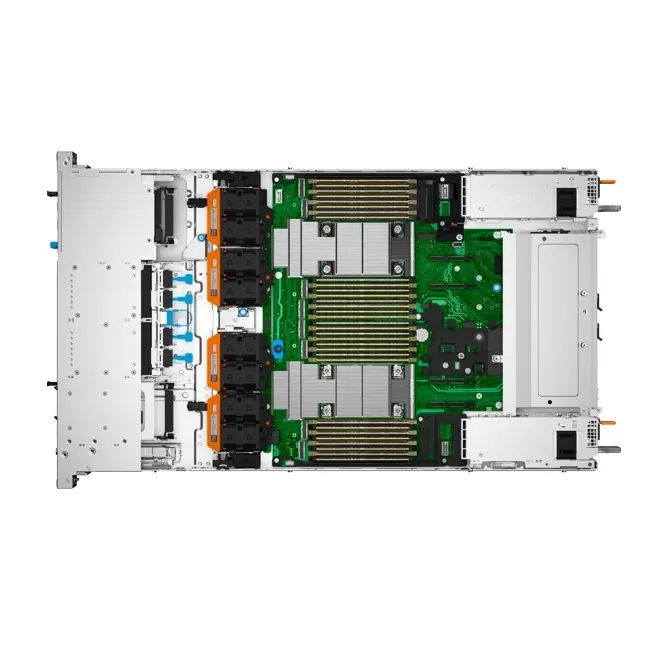

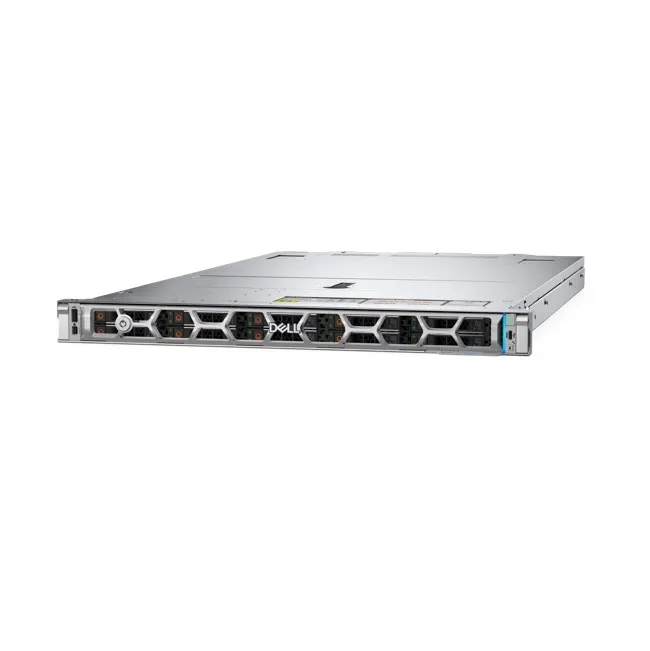

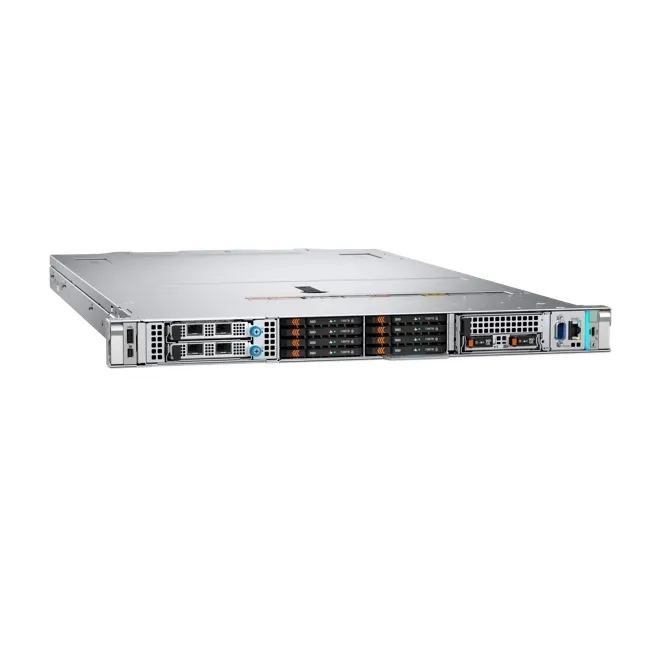

DELL PE R670/ 8x2.5 NVME/ 2x6520P/ 8x64GB 6400MT/s/ 6x1.92TB NVME RI/ H965i/ iDRAC10 Ent/ 2x10/25GbE SFP28/ Bezel/ Rails/ 2x1100W/ 3YW
Dell PowerEdge R670 Server Specifications Product Model: Dell PowerEdge R670
Description
Product Type: Rack Server
Chassis: Supports up to 8 × 2.5-inch NVMe hot-plug drives
Form Factor: 1U rack-mounted server
Manufacturer: Dell Technologies
Processor and Performance Processor Type: Intel Xeon 6 Performance 6520P
Number of Processors: 2
Processor Base Frequency: 2.4 GHz
Cores per Processor: 24 cores
Threads per Processor: 48 threads
Interconnect Speed: 24 GT/s
Cache: 144 MB
Turbo Boost: Supported
Processor TDP: 210 W per processor
Processor Memory Support: DDR5-6400
Memory Memory Type: DDR5 RDIMM
Total Installed Memory: 512 GB
Number of Memory Modules: 8 × 64 GB
Memory Speed: 6400 MT/s
Memory Rank: Dual Rank
Memory Configuration: 8 × 64 GB RDIMM
Storage Drive Bay Configuration: Up to 8 × 2.5-inch NVMe hot-plug drives
Installed Drives: 6
Drive Capacity: 1.92 TB each
Total Raw Installed Storage Capacity: 11.52 TB
Drive Type: Data Center NVMe SSD
Drive Usage Classification: Read Intensive
Drive Interface/Form Factor: U.2
Drive Carrier: Included
Hot-Plug Support: Yes
Storage Controller Controller Model: PERC H965i
Controller Location: Front
Controller Configuration: DCMHS
Network Connectivity Network Adapter: Broadcom 57414
Network Speed: 25 GbE
Number of Ports: 2
Interface Type: SFP28
Bus Interface: PCIe
Adapter Profile: Low Profile
Security Feature: Included (as indicated by “+Sec” in the configuration)
Chassis and Expansion Chassis Type: 1U rack chassis
Front Bezel: PowerEdge 1U Standard Bezel
Riser Configuration: Riser Config 5
Rear Expansion Slots: 2 × PCIe x16, Full Height, Gen 5
OCP Slot: 1 × OCP x8/x16, Hot Aisle configuration
Remote Management Management Controller: iDRAC10
Management Edition: Enterprise
Server Generation: 17th Generation (17G)
Power Supply Power Supply Configuration: Dual redundant power supplies (1+1)
Hot-Plug Power Supplies: Yes
Power Rating: 1100 W per power supply
Efficiency Certification: 80 PLUS Titanium
Input Voltage: 100–240 V AC
Redundancy: Yes
Power Cables: 2 × C13 to C14
Power Cable Rating: 10 A
Power Cable Length: 6.5 feet (2 m)
Cable Type: PDU-style power cord
Rack Mounting and Accessories Rail Kit: ReadyRails Sliding Rails (A15)
Mounting Type: Rack-mounted
Front Bezel: Included
Power Cords: 2 included
Warranty and Support - Warranty Period: 3 years Next Buisness Day
